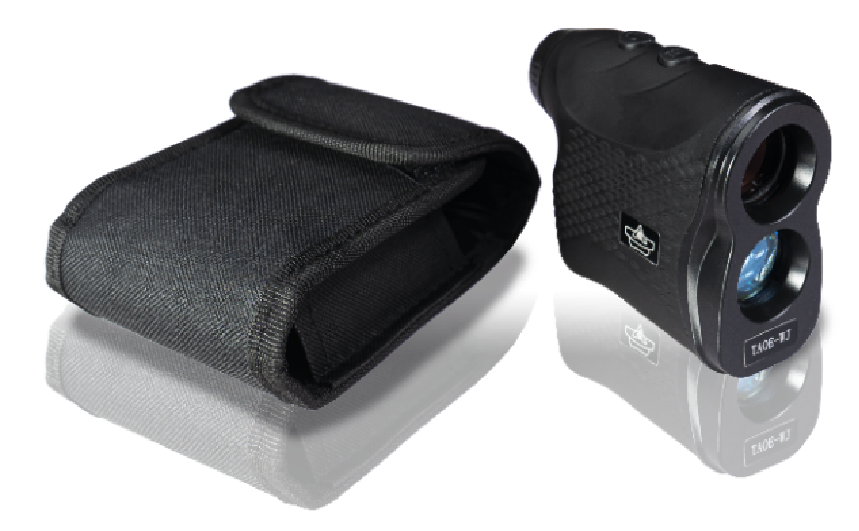

Laser rangefinder
1. Exit pupil diameter：3.8mm.
2. Ranging error: Average ±1 m.
3. Speed measurement error: ±5 km/h.
4. Angle measurement error: Average ±1°.
5.Product weight: 172 g.
6. Product dimensions: 105 × 82 × 43 mm.
7. Operating temperature: -10°C to 40°C.
This product is a portable optoelectronic device that can measure the distance, height, viewing angle, and moving speed of stationary objects within a certain range. It features high accuracy, short measurement time, low power consumption, and an automatic shutdown function. Moreover, it can capture small targets such as flagpoles in complex environments.
1.Laser type：905nm.
2. Ranging range：600m；1000m；1500m.
3. Speed measurement range：0～300km/h.
4. Angle measurement range：±60°.
5. Telescope magnification：6× .
6.Exit pupil distance:16mm.
1. Exit pupil diameter：3.8mm.
2. Ranging error: Average ±1 m.
3. Speed measurement error: ±5 km/h.
4. Angle measurement error: Average ±1°.
5.Product weight: 172 g.
6. Product dimensions: 105 × 82 × 43 mm.
7. Operating temperature: -10°C to 40°C.
1.** Installation and Calibration**: The holographic sight should be correctly mounted on the firearm, and necessary calibration should be carried out to ensure aiming accuracy.
2.**Battery Management**: Regularly check and replace the batteries to avoid affecting the normal use of the sight due to insufficient gun sight power.
3.**Maintenance**: Keep the sight clean and dry, and avoid it from being affected by adverse factors such as impacts or vibrations.
4.**Operation Specifications**: When using the holographic sight, the operation specifications should be followed to ensure the safety of the shooter and the aiming accuracy.
