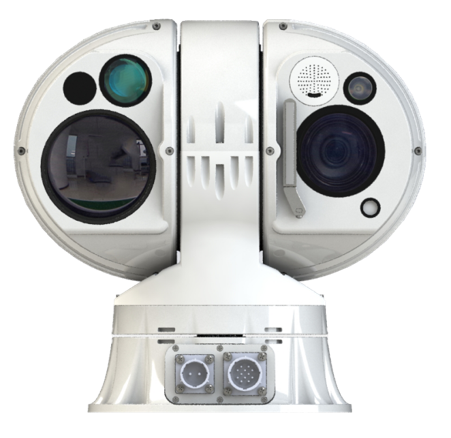

Intelligent Electronic Sentinel Guarding System

1.Lens focal length: 7mm to 300mm, with 43x optical zoom and 16x digital zoom.

2.Rotation angle: Horizontal: continuous rotation of 360°; Tilt: -90° to +90°

3.Field of view: 5.9°×4.7°

4.Weight: Less than or equal to 10 kilograms (including the load)

5.Dimensions: 312mm×200mm×298mm (length×width×height)

6.Operating temperature: -25°C to 60°C

7.Operating voltage: DC9 to 36V, with an external AC220V or a battery-powered adapter

8.Protection level: IP66


The intelligent electronic sentry is a lightweight, multi-functional, multi-purpose and intelligent optoelectronic detection device that integrates uncooled infrared thermal imaging, high-definition visible light, laser illumination/ranging module, acoustic and optical warning module, image processing module, intelligent analysis module, control and transmission module, precision pointing device, etc. It can be applied to border and coastal defense, military important areas, airports, prisons, nuclear, biological and chemical bases, and weapon equipment supporting, etc., to achieve functions such as reconnaissance and surveillance, situation awareness and security early warning.


  1.All - day and all - time; Multi - dimensional perception; Highly intelligent; Active defense; Health management; Flexible deployment; Wind - resistant and anti - shake; Military - grade quality.


  2.Operating range: Under the conditions of visibility not less than 10 kilometers, air humidity not more than 60%, and clear visibility at normal temperature, it can detect medium-sized vehicles (4.6m × 2.3m) at a distance of not less than 7000 meters and recognize them at a distance of not less than 4000 meters; it can detect standing personnel (1.8m × 0.5m) at a distance of not less than 5000 meters and recognize them at a distance of not less than 2500 meters.


  3.Resolution: 1920×1080



1.Lens focal length: 7mm to 300mm, with 43x optical zoom and 16x digital zoom.


2.Rotation angle: Horizontal: continuous rotation of 360°; Tilt: -90° to +90°


3.Field of view: 5.9°×4.7°


4.Weight: Less than or equal to 10 kilograms (including the load)


5.Dimensions: 312mm×200mm×298mm (length×width×height)


6.Operating temperature: -25°C to 60°C


7.Operating voltage: DC9 to 36V, with an external AC220V or a battery-powered adapter


8.Protection level: IP66








1.** Installation and Calibration**:  The holographic sight should be correctly mounted on the firearm, and necessary calibration should be carried out to ensure aiming accuracy.

2.**Battery Management**: Regularly check and replace the batteries to avoid affecting the normal use of the sight due to insufficient gun sight power.

3.**Maintenance**: Keep the sight clean and dry, and avoid it from being affected by adverse factors such as impacts or vibrations.

4.**Operation Specifications**: When using the holographic sight, the operation specifications should be followed to ensure the safety of the shooter and the aiming accuracy.
