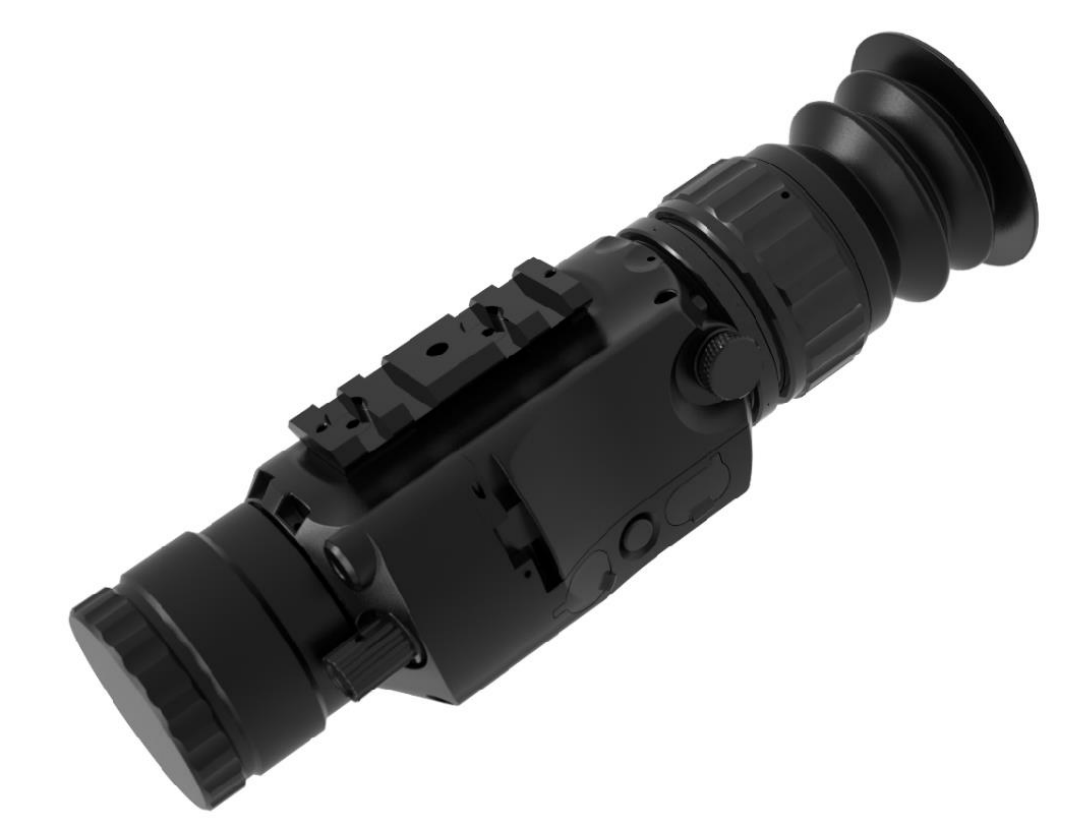

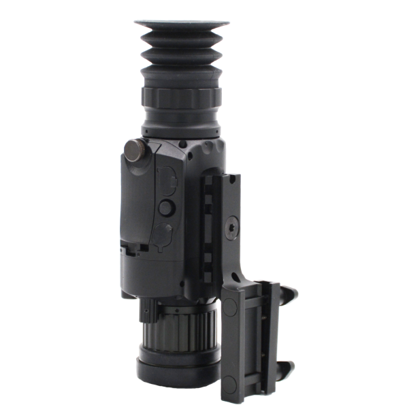

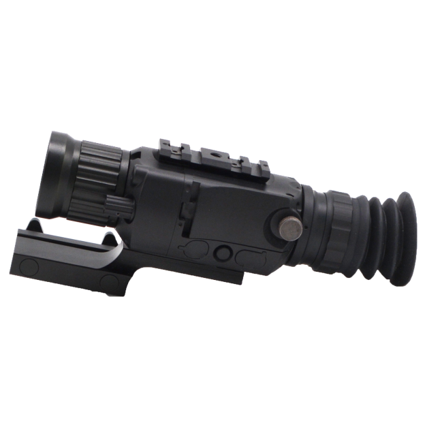

Multifunctional thermal imager

1. Design with or without a baffle, 50/60Hz real-time imaging display, and no trailing shadows when moving quickly.
2. Multiple color options including white hot, black hot, red hot, brown, iron red, and rainbow.
3. Standardized interface, with a reticle crosshair, and the color of the reticle lines is automatically adjusted.
4. Manual or fully automatic image enhancement mode, which enables the detection of targets in extremely harsh environments.
5. Extremely low power consumption, allowing for continuous operation for a long time.
6. Equipped with a laser red dot indication.
7. Optional high-precision laser ranging function.

1.Detector type: Vanadium oxide, 640×480, 17um/12um；

2.Sensitivity: ≤40mk @f/1, 300K

3.Spectral range: 8～14um

4.Lens focal length: 35mm (Optional: 50/35/25/19)

5.Field of view angle: 10.7°× 8°

6.Detection distance: 1500 meters

7.Focus adjustment range: 10 meters to infinity

8.Exit pupil distance: 50mm

9.Video output: RS170 CCIR/ PAL composite video

10.Image polarities: White hot, black hot, brown, red hot, iron red, rainbow；

11.Crosshair: Movable crosshair；
